Construction and Development of an Automated Greenhouse System Using Arduino Uno
Автор: T. Saha, M. K. H. Jewel, M. N. Mostakim, N. H. Bhuiyan, M. S. Ali, M. K. Rahman, H. K. Ghosh, Md. Khalid Hossain
Журнал: International Journal of Information Engineering and Electronic Business(IJIEEB) @ijieeb
Статья в выпуске: 3 vol.9, 2017 года.
Бесплатный доступ
An automated greenhouse is a framework that utilizes nursery innovations to make a positive ecological condition virtually to develop ideal creation of plants. Controlling climatic conditions are one of the most critical challenges in agribusiness. In like manner, a robotized nursery framework has been developed to accomplish observations and controlling of the climatic parameters which is straightforwardly or in a roundabout way that administers the plants development and generation. In a nursery using greenhouse structure that is made with glass or plastic it warms up from approaching obvious sun oriented radiation which is consumed by the plants and absorbed by the surface. Eventually air is warmed by the warmth from hot inside surfaces and held within the nursery dividers that makes the environment inside it warmer. With the association of present day innovations, this research takes a risk to actualize these frameworks for farming with no human consideration. The motivation behind this exploration is to make an innovation that makes exceedingly exact environment in a work sparing angle. In this work an Atmega328 MCU is utilized to do some predefined tasks, made by some specific codes with the help of an Arduino prototyping board. The system projects the parameters in a display as well as controls four vital parameters like temperature, light, humidity and soil moisture to accomplish viability and functionality of nursery environment control gadgets.
Greenhouse, Humidity, Moisture, Sensor, AT-MEGA328, Light Dependent Resistor
Короткий адрес: https://sciup.org/15013505
IDR: 15013505
Текст научной статьи Construction and Development of an Automated Greenhouse System Using Arduino Uno
Published Online May 2017 in MECS
Greenhouse is an important part in agriculture and horticulture sectors. It can be used to grow plants under controlled climatic conditions for optimum production. Crop production and quality have significantly increased with the utilization of greenhouse which has helped us to cope with the ongoing rising demands.
For the improvement of greenhouse technology, the first attempt was made to develop automated system for watering plants [1]. To achieve the better enhancement of the growth of the plants in greenhouse, Data Acquisition Using Arduino was introduced [2]. For improving the performance of greenhouse automation, microcontroller
(Keil Compiler based 8051) with A/D converter is used [3]. The climatic condition which is favorable for the mini Orchid was studied. According to the study, finally mini Orchid Greenhouse was designed successfully that was automated [4].
Now a day’s agriculture doesn’t only limit to cultivate crops rather following convenient and efficient way to grow more crops. The demand & usefulness of greenhouse technology is increasing with increase in population and there is no alternative of it to cope with epicurean lifestyles of people. Not only that, it is not convenient to rely on natural climatic condition in agriculture. It can easily be realized from the histories behind the development of greenhouse technology. In 30 AD at Rome; the ailing emperor Tiberius once became sick and was asked by the royal physician to take cucumber as medicine. But the season wasn’t favorable enough to get cucumber. Eventually a room with transparent roof was made. Sunlight used to be passed through the transparent roof and additional heat could have been given into it from outside from a fireplace to maintain optimum warmth. That was how greenhouse had been invented [5].
The objective of this work is to design a simple, easy to install, microcontroller-based circuit to monitor and record the values of temperature, humidity, soil moisture and sunlight of the natural environment that are continuously modified and controlled in order to optimize them to achieve maximum plant growth and yield. This makes the proposed system to be an economical, portable and a low maintenance solution for greenhouse applications, especially in rural areas and for small scale agriculturists.
-
II. Related Work
To manage greenhouse with the Embedded System and Zigbee Technology was implemented by S.Thenmozhi et al [6]. Remote Monitoring Station was implemented by Jonathan A. Enokela et al [7] for securing Greenhouse Control System. Climate monitoring system based on
Wireless Sensor Network (WSN) technology was developed by Mahmoud Shakeret et al [8]. A. Rahali et al [9] developed greenhouse system based on GSM. CAN Bus is used to automate green house by Shridhar Joteppagol.M et al [10]. By using ARM7 Controller Sushama Arjun Kolhe et al [11] describe greenhouse automation. Another technique was implemented by using Zigbee and Smart Phone. Y.R.Dhumal et al [12] had implemented this by using synchronizing software (TEAM VIEWER) to communicate with Visual Basic Software via Web Server to an Android mobile phone. The natural and the artificial environments are combined by R.Arunraj et al [13]. In this system temporarily opened/closed roof is used to utilize natural heat for the purpose of maintain room temperature. This system also uses PLC technology that controls multiple environments at a time.
-
III. Proposed System
This system consists of various sensors, namely soil moisture, temperature, humidity and light sensors. These sensors sense various parameters and are then sent to the microcontroller. Here, Atmega328 MCU is used which controls the greenhouse.
To implement greenhouse environment, soil moisture sensors, temperature sensors, LDR, humidity sensors are studied. After studying these, the program has been written on to the microcontroller for specific environment conditioning.
The desired temperature and humidity are maintained by turning on heater/cooler. The moisture level within soil is also be controlled by turning the water valve on/off. Desired light intensity for that environment can also be controlled by emergency lights when necessary. Hence, the greenhouses’ environment is controlled automatically.

Fig.1. Block Diagram of the Proposed System
Fig.1 illustrates a block diagram of greenhouse automation system design with its hard ware components involved and connections. Here the main component is the microcontroller (At mega 328). Four sensors have been used to feed the input parameters at AT mega 328. It reads this sensor output and can generate output according to the program written into it. It can read both digital and analog inputs and can generate digital output. For example, ATmega 328 reads analog data from humidity sensor and then generates digital high/low output according to the threshold value which is written in the program, if it reads digital data from the moisture sensor then it can generate digital high/low output according to the internal logic written into the program. The microcontroller constantly monitors the digitized parameters of the various sensors and verifies them with the predefined threshold values and checks if any corrective action is to be taken for the condition at that instant. In case if such a situation arises, it activates the actuators to perform a control operation. An array of actuators can be used in the system such as relays, contactors, and change over switches etc. They are used to turn on AC devices such as motors, coolers, pumps etc. For the purpose of demonstration relays have been used to drive AC bulbs to simulate actuators and AC devices. A complete working system can be realized by simply replacing these simulation devices by the actual devices. Implementation of the proposed system can be done in two ways:
-
1) As a research system: Any agriculture farm can evaluate system requirements for an individual plant species by setting different logics and values to get desired results.
-
2) As a product: This proposed system can be supplied as a package product with predefined climatic parameters required for different species.
-
IV. Hardware Design and Development
Fig. 2 represent the graphical representation of the application of the system. The hardware system is developed with combination three different parts.
-
A. Humidity& Temperature Sensors
Humidity is the presence of water in air. Therefore, to measures both moisture and air temperature, this part of the system monitors real time humidity and temperature data from the area continuously to keep the greenhouse humidity and temperature at desired level. The greenhouse system has some static humidity and temperature levels. Above/bellow those values, the microcontroller sends corresponding signal to the interface devices that turns on the air-condition on to restore the greenhouse humidity and temperature. It takes analog input from the humidity and temperature sensors and provides digital output. The flowcharts of the operations are shown in Fig. 3 and Fig. 4.
Direct sun light and heat from sun

Fig.2. Graphical representation of the application of the system.
Heater
Humidity and Temperautre Sensor
Light Sensor
Control Panel
Moisture Sensors
Water pump
Crops

Fig.3. Flowchart for humidity measurement.

Fig.4. Flowchart for temperature measurement.
-
B. Soil Moisture Sensors
This section has been used to detect the water level in the corresponding greenhouse. If there is a lack of water in greenhouse the detector senses, it and sends signal to the microcontroller. Therefore, the microcontroller sends signal to the corresponding devices to turn on the pump. Furthermore, when the soil has moisture to a desired level the microcontroller sends signal to turn off the pump through interfacing devices according to the sensors output. The program is written on the microcontroller according to the flowchart represent in Fig. 5.

Fig.5. Flowchart for automatic water pump control.
-
C. Light Dependent Resistor (LDR)
If there is a lack of sunlight in greenhouse the detector senses, it and sends signal to the microcontroller. Therefore, the microcontroller sends corresponding signal to the interfacing device to turn on the lights.
Furthermore, when sunlight is at a desired level the microcontroller sends signal to turn off the lights according to the sensor output. To on/off the lights in the greenhouse depending on the sunlight intensity, the program was written on the microcontroller according to the flowchart shown in Fig. 6.

Fig.6. Flowchart for automatic light intensity control.
-
V. System Simulation, Results and Discussion
The overall proposed automated greenhouse system containing temperature sensor, humidity sensor, LDR, soil moisture control system is simulated by using
Proteus 8 window, Table 1 illustrates system functions status for our project.
To maintain climatic condition inside the greenhouse the temperature, humidity, LDR and soil moisture sensors are used to sense the natural climatic condition, whose output signals used by the microcontroller to control the leading climate control devices shown in Fig. 7.

Fig.7. Simulation circuit of the system.
Table 1. System functions status
Obs no |
Hum Value |
µC Action |
Temp Value |
µC Action |
LDR Value |
µC Action |
Moisture Value |
µC Action |
1 |
<30 |
High |
<20 |
High |
<400 |
High |
High |
Low |
2 |
>75 |
High |
>35 |
High |
>400 |
Low |
Low |
High |
3 |
>30&<75 |
Low |
>20&<35 |
Low |
--- |
--- |
--- |
Climatic parameters such as humidity, temperature, light, soil moisture etc. have impact on agriculture. Starting from seed sow to crop collection every step has different requirements of climatic parameters. They even differ from species to species. So, to get optimum growth species wise it is necessary to ensure suitable temperature, humidity, light and soil moisture level. Table 2 represent the plant wise information of humidity and temperature level.
Table 2. Plant wise information of humidity and temperature level
Obs no |
Fruits |
Suitable Country |
Required Temperature |
Required Humidity |
1. |
Watermelon |
China, Turkey, Iran |
Higher than about 25 °C (77 °F) to thrive |
Medium |
2. |
Kiwifruit |
China, Italy, New Zealand |
Average Summer Heat |
Average |
3. |
Strawberry |
USA, Turkey, Spain |
15 – 27°C |
Low |
4. |
Raspberry |
Russia, Poland, United States |
late summer and fall |
High |
5. |
Orange |
Brazil, United States, China, India |
15.5 and 29 °C |
Moderated |

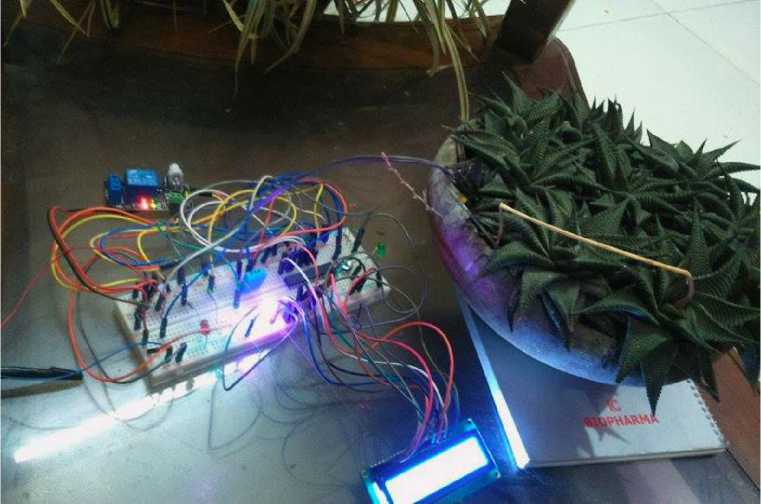

Fig.8. Implement circuit.
The Fig. 8 represent the practical implemented circuit of the developed system. Since the proposed system is a climate control package from the title there the climatic parameters are controlled automatically by using various sensors threshold values (programmable by microcontroller). In a greenhouse for good plantation some parameters like temperature, humidity, soil moisture and light must be controlled. For these reason four sensors (temperature sensor, humidity sensor, soil moisture sensor and LDR) are used to develop this system. The program is written on to the microcontroller for the specific environment conditioning. The desired temperature and humidity are maintained by turning on heater/cooler. The moisture in soil are also be controlled by turning the water valve on/off. The desired light flux for that environment can also be controlled by using emergency lights when necessary. Thus, the greenhouse environment is controlled automatically. The systems reaction time to restoration of variations of microclimatic parameters suffers from a few µs delay because of the program scan cycle.
-
VI. Conclusions
The developed system is suitable for both large scale agribusiness as well as small agriculture farm. For large scale agribusinesses, the cost will be increased for conditioning equipment’s but the controlling cost will be same in all arenas which are significantly less than labor costs. Moreover, the efficiency and accuracy of the system is more accurate than manual systems. Human can observe whether the soil is wet or not. But the proposed system is able to measure the actual amount of moisture that is present in the soil. Again, it is very tough for human to measure actual light intensity, temperature and humidity while this proposed system can do them all very accurately. It eliminates risk of human errors to maintain a greenhouse at a specific environmental condition. Moreover, it is also eco-friendly. With the addition of wireless technologies between the sensors the system can be more reliable, cost effective for larger area and easy to implement. But this technology with wire connections is more suitable for small scale agribusinesses.
