Human stress management through heart rate variability

Published Online August 2018 in MECS DOI: 10.5815/ijigsp.2018.08.02

• I.    Introduction

  In our current modern times, the pace of life is moving too fast, leaving us without time to sit down, relax and handle our accumulated life's pressures and pits. Mental stress can be further referred as an event where cognitive stressors causing a short term activation of the sympathetic nervous system. Human body is able to return to its normal state after dealing with stress under healthy conditions. However, the continuous exposure to stressful event may lead to chronic stress and exhaustion. Based on the statistic [1], there are 526,000 workers suffering from work-related stress, depression or anxiety in Year 2016/17. Many people do not aware that they are having stress issues and do not know how to manage them in a proper way. Once stress becomes serious, it

  may affect someone's mood, behavior and body. There is another survey “Malaysia’s Healthiest Workplace by AIA Vitality Survey 2017” [2], which surveyed a total of 5,369 employees from 47 organizations, revealed that Malaysian employees were overworked, stressed, led unhealthy lifestyles, and as a result, were at high risk of health problems and loss of productivity. Stress can be dangerous if not treated well. Moreover, stress is the basic cause of 60% of all human illness and disease that includes heart disease, high blood pressure, stroke and diabetes [3]. This is why human stress management is important.

The proposed application, dubbed “Intelligent Stress Relief”, is an application that may help people to manage and reduce own stress through a wearable Bluetooth heart rate sensor. The application allows user to check their stress level and understand their stress patterns using their heart rate data obtained from a Bluetooth heart rate sensor. Stress level can be calculated with just 2 minutes of heart beat interval. Stress level can be categorized based on Heart Rate Variability (HRV) triangular index through the user’s heart rate data. HRV triangular index is calculated using the formula where the sum of Normalto-Normal (NN) heart rate interval is divided with maximum NN heart rate interval [4]. There are five levels of stress which includes highly tense, slightly tense, mildly calm, quietly relaxed and deeply relaxed, as shown in the Table 1.

This application provides three main features, which are stress level checker, stress management, and database of meditation technique and relaxing music. Checking user stress level can be done by using Bluetooth heart rate sensor. A Bluetooth heart rate sensor is commonly embedded inside a smart watch, jogging tracker and others. HRV triangular index is measured from the user’s heart rate data through the reading of the heart rate sensor. Then the specific stress level of the user will be determined based on the HRV triangular index.

Table 1. Category of Stress Level based on Heart Rate Variability (HRV)

Heart Rate Variability Triangular Index	Stress Level
2-15	Highly Tense
16-25	Slightly Tense
26-52	Mildly Calm
53-60	Quietly Relaxed
> 60	Deeply Relaxed

According to the stress level, different responses from the application will be provided to the users. For example, the application will automatically play relaxing music and meditation technique audio when user is detected with slightly tense and highly tense after checking their stress level. There is a need of a calming surrounding and relaxing environment for people who are in stress to reduce their stress. Relaxing music helps in creating a relaxing atmosphere that is very much needed by stressed people. Other than that, the combination of relaxing sound and meditation techniques can be another solution to handle stress issues. Besides, users are allowed to manually choose their preferred music and meditation technique from the list. This application is equipped with a database of relaxing music and meditation technique to be used by the user.

User’s previous results of stress level are logged in online database using Google Firebase. This means user can retrieve and keep track of their stress patterns for better stress management. This in turn may trains users to take appropriate measures to manage stressful situations. Furthermore, user can set reminder notification to remind them to check their stress level regularly.

The details of this paper is elaborated and organized follows. In section II, some of the existing mobile apps related to the topic are briefly reviewed. Section III discusses the proposed system design. The implementation process of the proposed system is elaborated in Section IV. The testing scenario and result are tabled in Section V and finally, Section VI draws the concluding remarks of this paper.

• II.    Related Work

People show more concern about their health than earlier and increase their expectation towards mobile applications in managing their health status. In addition, the increasing demands of various fitness devices such as smart watch and jogging trackers inevitably show the awareness of people towards their health. There are plenty of mobile applications either Android or Mac iOS related to stress management have been developed over the years in the market. Most of the applications work as a library of meditation tools and relaxing music. Some of them are equipped with heart rate tracking. There are very less applications that calculate stress level and provide suitable advice to reduce stress, as what the proposed application does. The proposed application that utilizes the wearable fitness devices for sensing heart rate data is another highlight of the idea, in which the portability and convenience towards user are promised.

Table II shows the comparison of existing applications in the market. The existing applications related to stress management often lack of certain features. The aims of the proposed mobile app are to provide a complete package of stress management in single mobile application and enhance the weaknesses of the existing mobile applications.

Table 2. Feature comparison of related existing mobile apps

Apps Features	б	5 V	сц	И	1	5
Guided meditations	v		V	V	V	V
Relaxing music	v		V			V
Progress tracking	V		V	V	V	V
Reminder	V		V	V		V
Stress level checking (based on heart rate)		V				V
Heart rate monitor		V			V	V
Automatically play relaxing music and meditation technique audio when user get a bad stress level result						V

A comparison of the existing mobile applications that are available in the market and related to the proposed application, with a brief outline of their specification is listed below:

• a.    Calm [5]: This application offers a huge library of meditation technique and relaxing music. There is ‘7 Days of Calm’ meditation program available right away after installing the app for free. One of the downside is that user need to pay subscription fee to use most of the content. Subscription costs USD 12.99 monthly, USD 59.99 yearly or USD 299.99 for a lifetime. It provides unique relaxing music to be play by user during their session. The relaxing music includes nature sounds like fireplace, foggy stream, rain on leaves and many more. The application also provides progress tracking and reminder to make sure that user is on track during their meditation journey.

• b.    Stress Guide [6]: This application allows user to check their stress level based on their heart rate. Heart rate data is obtained through user’s device camera. However, it is not portable enough like taking reading from wrist heart rate sensor to keep

track at all times. There is also heart rate monitor function that might come handy to some user. Based on the user’s result, the app will give personalized tips on how to cope with stress.

• c.    Pacifica [7]: This application offers a huge library of meditation techniques and relaxing music but user need to pay for subscription fee in order to get full access. Subscription costs USD 5.99 monthly and USD 35.99 yearly. Free user still can benefit from the app despite limited access to the library but at some point the user might need the paid subscription. It also provides basic function such as progress tracking and reminder like other app in the market.

• d.    Headspace [8]: This application has a huge library that focus on meditation techniques. Same as [5,7], user will need to pay in order to get full access. Subscription costs USD 12.99 monthly and USD 94.99 yearly. There is level system for the app guided meditation course. Free user only get access to the first level which is not enough obviously. User definitely need the paid subscription in order to benefit from the app. It also provides progress tracking and reminder like other app in the market.

• e.    Sattva [9]: This application offers a library of meditation techniques and user only needs to pay a small amount in order to benefit from the app. User do not need to pay monthly or yearly subscription but instead they only pay for the guided meditation that they want and the best thing about it that they can keep them forever. Price starts from USD 0.99 for each guided meditation. However, the app is lack of relaxing music but developer add a function where user can play music from their phone’s music library during meditation session to overcome the limitation. The application provides progress tracking and heart rate measuring through device camera for heart rate monitor purpose. It also provides feature like reminder to help user stay on the track throughout their journey using the app.

All the existing mobile applications mention above does not come with a complete package unlike the proposed mobile application. The proposed mobile application comes with all the important features like guided meditation, relaxing music, progress tracking, reminder, stress level checking and heart rate monitor. On top of that it also offers a unique feature that automatically play relaxing music and meditation technique audio whenever user is getting a bad stress level result. Not to mention that user can use all the features without paying a cent unlike the existing mobile applications.

• III.    Proposed System Design

The main goal of the proposed mobile application is to measure user’s stress level based on heart rate data through a Bluetooth heart rate sensor and provide suitable advice according to the different levels of stress as listed in Table I in the previous section. In order to measure the stress level, user would need to install the proposed mobile application on his/her Android device and connect a Bluetooth heart rate sensor (smart watch, jogging trackers and others with heart rate sensor feature) with his/her Android device. The system architecture is shown in Fig. 1. The heart rate reading of a user is tracked through the heart rate sensor. Then the heart rate data is transmitted to the Android device with Bluetooth connection. The proposed application in the Android device will calculate the heart rate variability (HRV) triangular index using the heart rate data to determine the stress level. From the stress level, the proposed application will automatically play a particular music or meditation technique audio.

Fig.1. System architecture

Fig. 2 shows the flow chart diagram of the proposed mobile application. In this flow chart diagram, the process of transmitting and converting heart rate data to stress level is demonstrated. If the stress level is mildly calm, quietly relaxed or deeply relaxed, there is no advice being generated from the process and the process will end. For slightly tense stress level, the application will play relaxing music automatically and the process will end. Lastly, both the relaxing music and meditation audio will be played if the result is highly tense. After that the process will end.

Fig.2. Flow chart diagram

• A.    Application Scenarios

Fig. 3 shows a scenario when user obtains highly tense as stress level result after checking their stress level using the application and a Bluetooth heart rate sensor. When the result is highly tense, there is an urge for user to reduce their stress seriously. Hence, the application will automatically play suitable relaxing music and meditation technique audio to calm the user. User is allowed to manually select the preferred music and meditation audio if there is a need.

level result, the application will not play relaxing music or meditation audio but it will give a praise due to the good result.

User check stress level

Slightly Tense

Bluetooth heart rate sensor

Fig.4.Slightly tense stress level result

• B.    Important Source Codes

The proposed application is tested and paired with Mi Band 2 Bluetooth heart rate sensor. In order to support Mi Band 2 Bluetooth heart rate sensor with the proposed mobile application, Mi Band SDK must be applied. Mi Band SDK dependencies and declaration need to be included in the coding in order to use Mi Band SDK. The code snippet used to connect Mi Band 2 with the proposed Android application is shown in Fig. 5.

Fig.5. Connecting Mi Band 2 using Mi Band SDK

Fig. 6 demonstrates the snapshot of code to enable Mi Band 2 heart rate scan with its sensor. The sensor allows the scan to get started.

User check stress level

Android App heart rate sensor

Fig.3. Highly tense stress level result

Stress level

Highly Tense

Relaxing Music

Meditation Technique Audio

Fig. 4 shows a scenario when user receives slightly tense as stress level result after checking their stress level using the application and a Bluetooth heart rate sensor. Since the stress level is not high, the application will automatically play only the relaxing music to sooth user stress. Other than that, in a situation that user gets mildly calm, quietly relaxed or deeply relaxed as their stress

Fig.6. Enabling Mi Band 2 heart rate scan

Fig. 7 shows, the code snippet used to extract heart rate data and measure stress level throughout the activity in the application.

String hrData — data.substring(11, 14);

if (KhrArray. length) { hrArray[i] — Float. parseFloa t(hrData);

float hr — Float. parseFloa t[hrData);

double heartRate — (double) hr;

int hrlnt — (int) heartRate;

String hrText — hrlnt + " bpm";

heartrate.setText(hrText);

}

Fig.7. Extracting heart rate scan

Lastly, Fig. 8 presents the snapshot of code to calculate the heart rate Normal-to-Normal (NN) interval with the heart rate data extracted while Fig. 9 displays part of the code that is used to calculate and classify the HRV triangular index. The index determines the specific stress level of the user.

Fig.8. Heart rate NN interval calculation

//HRV triangular index hrvlndex = rrTotal/max;

if(hrvlndex > 1 & hrvlndex <= IS) stressLevel = ’’Highly Tense”;

else if((hrvlndex > 15) & (hrvlndex <= 25)) stressLevel = ’’Slightly Tense”;

else if((hrvlndex > 25) & (hrvlndex <— 52)) stressLevel = ’’Mildly Calm”;

else if((hrvlndex > 52) & (hrvlndex <= 60)) stressLevel = ’’Quitely Relaxed”;

else if(hrvlndex > 60) stressLevel = ’’Deeply Relaxed";

• IV.    Implementation Process

The implementation process of the proposed application can be divided into two main tasks, which are developing prototype functionalities and designing prototype graphical user interface.

• A.    Prototype Functionalities

There are six major functions that can be performed by the installed mobile app on the Android device to serve the purpose of managing stress. They are:

• 1)    Sign In and Sign Up Page

• 2)    Check Stress Level Page

• 3)    Meditation Technique Page

• 4)  Relaxing Music Page

• 5)  Progress Tracking Page

• 6)    Reminder Page

• B.    Prototype Graphical User Interface

1) Sign In and Sign Up Page

Fig.10. Sign up and Sign in page

User needs to sign up an account in order to use the proposed mobile app. This will prevent user data from losing when user might be changing to new device or formatting their device. Having a registered account would ease in extracting logs and records of activities. Fig. 10 shows sign up and sign in page of the application.

2) Check Stress Level

(a)

(b)

(c)

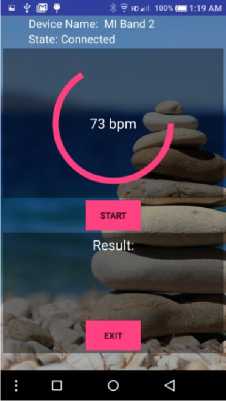

Fig.11. Check stress level sequence. (a) Scanning heart rate variability; (b) Displaying HRV with stress level; (c) Advice given based on stress level.

Fig. 11 shows the processes of determining stress level. Fig. 11 (a) is the page of scanning user’s heart rate variability through the Bluetooth connection from a heart rate sensor. It would take around two to three minutes before getting the HRV result. Moreover, the application will also show live update of user heart rate beats per minute (bpm) information during the stress level checking. Fig. 11(b) shows the result of stress level together with the HRV triangular index at the end of the activity. With the stress level determined, advice of practicing a particular meditation technique is provided to users. Music will also be played based on the various stress levels. From the screen, user can choose to read more about the suggestion given or to close the pop-out message.

• 3)    Meditation Technique Page





  Meditate

  Breathing Meditation (5 mins)

  Breath, Sound, Body Meditation (12 mins)

  Loving Kindness Meditation (9 mins)

  Body and Sound Meditati^MDiepi^

  Body Scan Meditation Q^l^

  Body Scan for Sleep (J3_mins)

  Meditation for Working with Difficulties (7 mins)

  Fig.12. Meditation technique page




Fig. 12 shows the meditation technique page of the application. This is where user can play meditation technique audio for practicing in order to reduce their stress. There are different meditation technique audios to be chosen. Each with different duration of practicing.

• 4)    Relaxing Music Page

Fig.13. Relaxing music page

Fig. 13 shows the relaxing music page of the application. This is where user can play relaxing music in the event that the user does not like the auto-played music provided along with the stress result. This gives the flexibility for user to have their own preference in playing relaxing music.

• 5)    Progress Tracking Page

Fig.14. Progress tracking page

Fig. 14 shows the progress page of the proposed application. This is the log page where user can keep track of their stress level results. With the records of daily stress level, user can easily monitor their stress status and equip with better stress management skill.

• 6)    Reminder Page

Fig.15. Reminder page

Fig. 15 shows the reminder page of the application. User can set a timer in the proposed application to remind user on checking their stress level. This is essentially important for those who are under stress and needs to have self-monitoring for stress management.

• V.    Result

Several software testing are carried out in order to test the validity and reliability of the newly developed application. Unit test is performed on each individual module (feature module) to evaluate whether they fit the intended purpose. After the individual modules pass the unit test, the individual modules are combined and integration test is carried out to evaluate the performance and reliability of the functions. The layout of the graphical user interfaces of the proposed application is tested as well. This is to ensure that the proposed application works well on different phone models.

Table 3 presents the test case scenarios and the results. Different aspects are covered in the test cases to confirm the smoothness and efficiency of the proposed application. The test cases are expected to provide a promising output. If there is error found during testing, the code is continuously debugged and revised until everything is fine.

Table 3. test case scenarios

Test Cases	Expected Output	Result
Turn on Bluetooth connection	Bluetooth enabled	Pass
Turn off Bluetooth connection	Bluetooth disabled	Pass
Scan nearby Bluetooth devices	Found nearby Bluetooth devices	Pass
Pairing Bluetooth device	Bluetooth device is paired successfully	Pass
Unable to Pair Bluetooth Device	Pairing failed	Pass
Unpairing with paired device	Devices are unpaired	Pass
Connect to Bluetooth device	Bluetooth device is connected	Pass
Unable to connect to device	Device is not connected	Pass
Disconnecting to device	Device is disconnected	Pass
Unable to disconnect with device	Device is not disconnected	Pass
Check stress level when Bluetooth device is disconnected.	Failed to start checking.	Success
Check stress level when Bluetooth device is connected.	Start checking successfully.	Success
HRV Triangular Index is between 2 and 15.	Stress level result is “Highly Tense”	Success
HRV Triangular Index is between 16 and 25.	Stress level result is “Slightly Tense”	Success
HRV Triangular Index is between 26 and 52.	Stress level result is “Mildly Calm”	Success

HRV Triangular Index is between 53 and 60.	Stress level result is “Quietly Relaxed”	Success
HRV Triangular Index is more than 60.	Stress level result is “Deeply Relaxed”	Success
Stress level result is “Quietly Relaxed”	Show compliment words.	Success
Stress level result is “Deeply Relaxed”	Show compliment words.	Success
Stress level result is “Mildly Calm”	Show compliment words.	Success
Stress level result is “Slightly Tense”	Play relaxing music.	Success
Stress level result is “Highly Tense”	Play relaxing music and meditation audio.	Success
Click one of the meditation technique	Particular meditation technique audio is played.	Success
Click one of the relating music	Particular music is played.	Success
Tracking records of results	List of scanned results is displayed.	Success
Set reminder for stress management	Reminder is saved. Reminder rings at the preferred time.	Success

Other than this, a post survey has been conducted to collect the feedback from the user regarding the performance of the prototype of the proposed mobile application. The target audience is any users who own Android devices and Bluetooth heart rate sensors. About 55 users participated the survey. Based on the survey, there are 80% of the participants have used or downloaded existing Android apps related to stress management that are available in the Google Play Store. In this survey, most of the participants who installed the proposed application agree that the proposed application is user-friendly. 90% of them are satisfied with the proposed application and would like to continue using the proposed application in their daily life. Besides, 85% of them think that the proposed application will help them to reduce stress and manage their stress effectively. Most of them would likely recommend the mobile app to their family members, friends and others. Lastly, the feature of the proposed application where the relaxing music and meditation audio will be play automatically based on the specific stress result, has been chosen as the best feature by most of the participants.

• VI.    Conclusion

An android application named “Intelligent Stress Relief App” is proposed with the aim to assist the users in managing their daily stress in a better way. This proposed application utilizes the technology of Bluetooth to connect the heart rate sensor to the Android device. Heart rate data is obtained from the Bluetooth heart rate sensor and transmitted to the proposed application in the Android device. Knowing stress level is important in order to handle the stress with suitable methods. Most of the time, people do not aware that they are facing mental stress until it becomes worsen. Using the heart rate data, the HRV triangular index is calculated and user is able to know their stress level.

In view of releasing stress, user is able to play relaxing music and meditation audio provided by the proposed application. Many studies shown that listening to relaxing music and meditation audio can indeed reduce stress gradually in time.

Most importantly, user can keep track their daily stress level with the use the proposed application. The logs of the tracked stress level can be a reference for user to maintain their emotion and to monitor the improvement of their own stress level over time. With these, user can plan their activities on improving their stress level and thus having better stress management.

The highlight of the proposed idea is the portability in tracking own stress. Without relying on a static heart rate sensing equipment, the wearable Bluetooth heart rate sensor with the proposed application encourages the users to track their stress anywhere anytime.

There are still chances of improvements or features can be added to the application in the future. One of them is to expand the database of relaxing music and meditation audio. Other than that, the application can be enhanced by minimizing the scanning time in extracting the heart rate data.
