Research on Humanoid Robot Soccer System Based on Fuzzy Logic

Published Online November 2010 in MECS

Robot Soccer is a high-tech combat activity, and it is the result of combining high-tech and football games people loved .It has been developed rapidly in recent years. Its research areas include robotics, intelligent control, wireless communications, image processing, mechanics and other disciplines and technologies. Through 10 years of development, now the international community has three major events FIRA, RoboCup and RoboCON[1]. Hundreds of teams from dozens of countries participate in the competition each year. However, humanoid robot is the most spectacular game in all competitions. As real-time and dynamic surrounding environment of football game, so it provides a very valuable experimental platform for the research of artificial intelligence theory and other related fields. It’s no doubt that fully autonomous robot [2-4] is the mainstream of development in the future following the robot car and semi-autonomous robot .In the context, this article designed an efficient fully autonomous humanoid soccer robot fuzzy control system.

The concept of fuzzy subset has been established in 1965 by L.A. Zadeh[5].Fuzzy control is a practical alternative for a variety of challenging control applications since it provides a convenient method for constructing nonlinear controllers via the use of heuristic information[6]. which means that fuzzy control provides a formal methodology for representing, manipulating, and implementing a human’s heuristic knowledge about how to control a system.

Fuzzy logics are many-valued logics that form a suitable basis for logical systems reasoning under uncertainty or vagueness. There are many uncertainties in the real world. Fuzzy theory treats a kind of uncertainty called fuzziness, where it shows that the boundary of yes or no is ambiguous and appears in the meaning of words or is included in the subjunctives or recognition of human beings. Fuzzy theory is essential and is applicable to many systems — from consumer products like washing machines or refrigerators to big systems like trains or subways. Recently, fuzzy theory has been a strong tool for combining new theories (called soft computing) such as genetic algorithms or neural networks to get knowledge from real data.

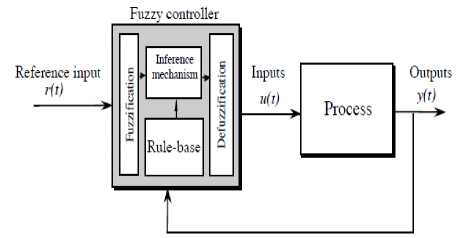

The fuzzy controller block diagram is given in Fig 1, where we show a fuzzy controller embedded in a closed-loop control system. The object controlled outputs are denoted by y(t), its inputs are denoted by u(t), and the reference input to the fuzzy controller is denoted by r(t).

f igure 1 f uzzy c ontroller architecture .

• II.    S tructure of H umanoid R obot S occer S ystem

A Situation on the field

Fig.2 shows the situation on the field, R Oj is the other side's robot. θ Oj is the drift angle from the direction of advance of robot R Oj to the ball. R Hj is our robot and θ Hj is the drift angle from the direct ion of advance of robot R Hj to the ball, γ is the angle between the ball moving direction and the line joining up ball center point and the opponent’s goal line center point.

Figure2 situation on the field

In the games, the most common and two basic targets are football and opponent goal. One is using football as the target: First of all, detect the relative position between the soccer and robot via the visual system and then adjust robot posture, finally close to the ball in the best posture; The second is using the enemy's goal as the target: Firstly detect the position of goal, and then adjust the robot posture, finally, robot with ball come near to the other side goal with the best posture [8-9]. Controller is the core part in achieving these goals. This paper is going to use “football” as target to study and design fuzzy logic controller.

At the beginning of the games, Robot should adjust the posture to find the position of ball in the field .secondly combining the direction of the opponent goal, the upper-computer control robot to act, including turning to right, left and so on. finally, robot walk forward directly to the ball and shoot to the goal. Next, it will tell you the details.

B basic construction of humanoid robot soccer system

The humanoid robot soccer system mainly consists of slave-computer, communication system, and supercomputer. The interaction relationship among them has been shown in Fig 3.

robot is 320×180×90 mm, weight 1.2kg. It has 17 degrees of freedom (DOF) and it can independently play football and complete many other complex movements. Fig4 displays the full-scale mockup established in PROE3.0. Wireless communication system is mainly used to transfer the action instructions from computer to robot and images data. Motor commands are transmitted by 2.4GHZ spike and robot could use 2400~2500MHZ wireless radio frequency to transfer image data. The super-computer's program is written by Microsoft Visual Studio 2008. The role of super-computer is mainly to realize the imagery processing and design of the decision system and so on.

Figure4 .METAL FIGHTER-2 robot model

• III.    D ESIGNING R OBOT ’ S BASIC MOVEMENTS

In order to control the robot to move, control data is too large if motor control instruction is sent directly by the computer. Considering the real-time requirements of robot soccer, this article designed a 27-based low-level action just as table1 shown. When the action code is directly written into robot chip, the decision-making system's task is just sending the corresponding action instruction into robot, which greatly reduces the amount of communication data. In the design of slave-computer action, the system uses robBASICv2.72 as a code editor and METAL FIGHTER-2 robot as a action debugger.

Slave-computer mentioned above is robot itself. This system uses METAL-FIGHTER- 2 humanoid robot with camera as a controlled object. The Size of this type of

IV. D esign of F uzzy D ecision C ontrol S ystem

TABLE I. T he name of basic action and the corresponding INSTRUCTIONS NUMBER

Right30&Up70(1)	Right15&Up70(2)	Walk&Up70(3)
Left15&Down40(4)	Left70&Up70(5)	Right30&Up60(6)
Right15&Up60(7)	Right30&Down40(8)	Left15&Up60(9)
Left30&Up60(10)	Right30&Keep(11)	Right15&Keep(12)
Left30&Down50(13)	Right15&Down50(14	Left30&Keep(15)
Right30&Down50(16)	Left15&Keep(17)	Walk&Down50(18)
Left15&Down50(19)	Walk & Keep(20)	Walk&Up60(21)
Right15&Down40(22)	Walk&Down40(23)	Left15&Up70(24)
Left30&Down40(25)	LeftShoot(26)	RightShoot(27)

Explain: Right30-Rotate Right 30°;Left30- Rotate Left 30°; Up70-head turn up to 70°;Down50-head turn down to 50°; Walk- Straight walk forward; LeftShoot- Left foot shooting; RightShoot- Right foot shooting; Keep-head keep up with the angle of the previous state; the number (1)-(27) stand for corresponding action instructions

A fuzzy system is a static nonlinear mapping between its inputs and outputs (i.e., it is not a dynamic system)[7]. It is assumed that the fuzzy system has inputs u _i ∈ U _i where i = 1, 2, . . ., n and outputs y _i ∈ Y _i where i = 1, 2, . . .,m, as shown in Fig5. The inputs and outputs are “crisp” — that is, they are real numbers, not fuzzy sets. The fuzzification block converts the crisp inputs to fuzzy sets, the inference mechanism uses the fuzzy rules in the rule-base to produce fuzzy conclusions (e.g., the implied fuzzy sets), and the defuzzification block converts these fuzzy conclusions into the crisp outputs.

Crisp Fuzzified Fuzzy Crisp

The whole working process of robot soccer system is shown in Fig7. In the construction of this system, both image processing and fuzzy decision control systems are achieved through programming in the Microsoft visual studio2008 environment. First of all, I’ll make several assumptions before designing control system as follows:

• 1)    Monocular camera line of sight is just in front of the robot, that is, an object in front of the robot is in the middle of the images captured by visual.

• 2)    Robot can execute instructions accurately which is sent by PC and walk steadily.

• A.    Structure and composition of Fuzzy Control system

Fuzzy control is a form of numerical control, and its composition is similar to the general digital control system. Aimed at Robot Soccer control performance and requirements for timeliness, a Sugeno fuzzy control system is designed in this paper which is used to complete finding, approaching the ball and shooting control.

Fuzzy Control System of Soccer Robot is mainly composed of fuzzy controller, Robot mechanical systems and processing program of image and other data, which is shown in Fig6 above.

Figure 7 Flow chart of Soccer Robot Working

Fuzzy controller is actually a computer, and it implements a variety of fuzzy algorithms which is necessary in the control process. It is also the "smart" part of the control system. Robot mechanical system is considered as a controlled object which directly receives instructions that are exported by fuzzy controller. Robot vision, image processing and data processing program work together to output the actual ball position value which is used as a feedback value to input. The original image of court which is accessed by the visual is shown in Fig 8-a. By image segmentation, feature extraction and other operations of image processing, we got the following images which are shown in Fig 8-b and c. Then we can get many interesting data through follow-up data-processing process. As shown in Fig 8-a, image upper left corner shows the coordinates of the ball's gravity is (101, 69) in the Coordinates “O”, and the distance between the robot and the ball is 13cm and other information. Following, the paper will make a detailed analysis for the design of fuzzy controller.

(a) Original Image

(b) Target Recognition result

(c) canny edge detection result

Figure8. the Original Image and the Visual Recognition Results

As we know that the main difference between fuzzy control system and usual computer control system is that the fuzzy controller is used. Fuzzy controller is the core of the fuzzy control system. Advantages and disadvantages of a fuzzy system performance depend largely on the structure of fuzzy controller, the use of fuzzy rules, inference algorithms, fuzzy decision synthesis methods and other factors. Following, Allow me to introduce the details step by step.

• B.    Design of Fuzzy Controller

Fig9 shows the construction of common Fuzzy logic controller, which has four main components, that is , fuzzification interface for input variables, knowledge base, fuzzy reasoning and defuzzification interface. The fuzzification interface simply modifies the inputs so that they can be interpreted and compared to the rules in the rule-base; The “rule-base” holds the knowledge, in the form of a set of rules, of how best to control the system; The reasoning mechanism evaluates which control rules are relevant at the current time and then decides what the input to the robot should be; the defuzzification interface converts the conclusions reached by the inference

Figure9 Common Fuzzy Controller Construction

The output variables of this control system in the paper are the robot control commands that are constant, so the system adopt Sugeno fuzzy model.

• 1)    choosing the fuzzy controller inputs and outputs

It must be understood that the choice of the controller inputs and outputs is a fundamentally important part of the control design process. In the paper, it designed a two-input and single-output control system. In order to make robot get near to target quickly, during the design of controller, this paper make the target position deviation that is the difference of expected ball gravity coordinates value and actual output value by data processing system as the system input variables, and here is denoted by (Δs1(t), Δs2(t)). As shown in Fig10, in the robot vision reference frame, S2 and S1 are horizontal and vertical coordinates of football gravity respectively. If both of coordinates S1 and S2 are zero, that is, the ball locate the origin O1, it indicate that the ball is in the center of robot vision. Otherwise, the fuzzy controller will output corresponding commands to drive robot action.

Figure 10. the establishment of variables Coordinate

As mentioned above, so as to avoid to transfer large communication data, the system designed basic moment and saved directly into slave-computer. So supercomputer’s function is to send control commend to make robot carry out corresponding action. Thereby, the controller use controlled command number as the output variable. and here is denoted by C.

• 2)    Fuzzy set vocabulary and domain of each variable

The specifications of the fuzzy set vocabulary and variable domain are the foundation of the model. The model’s correct behavior as well as its fitness for practical applications depends on well thought-out variable domains. Variable domains are established based on detailed studies of the particular characteristics of the application[10].

Because both of input variables are exact values, to use fuzzy control technology, it’s necessary that you should convert them into membership functions of fuzzy sets firstly. In order to facilitate project implementation, use X and Y to express the fuzzy subsets of deviation (Δs1, Δs2). And both of them are divided into 13 grades and expressed as -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, that is X=Y={-6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6}.Fuzzy linguistic variables of inputs are denoted by (NB, NS, ZR, PS, PB) (NB = negative big, NS = negative small, ZR = zero, PS = positive small, PB = positive big). Each linguistic word set corresponds to a membership function. The output variable is only control command, which is directly used by low-computer, so, the scale number of output is 1.And both of the input subsets are [24, 24], so the input scale number is 0.25.These are listed in the table 2 below.

TABLE II P ARAMETER LIST

variables	A 5 1	A 5 2	c
Linguistic variables	X	Y	C
actual bound of variable	[-24,24]		1,2,3. - 24,25
Fuzzy subset	NB, NS, ZR, PS, PB
Fuzzy bound of variable	[-6,6]		1,2,3. - 24,25
Proportional number	6/24=0.25		1

Membership function of input variables can use triangular, trapezoidal and bell-shaped function and so on. Theoretically, however, Bell is the best. Therefore, this system uses the bell-shaped membership function. Its function expression is given as follows.

f ( x , a , b , c ) =

1 +

x

- c

2 b

a

In the formula, the parameter b is usually positive; the parameter c is used to determine the center of curve.

3) Fuzzy control rules and decision making

The rule-base is constructed so that it represents a human expert “in-the-loop”. Hence, the information that we load into the rules in the rule-base may come from an actual human expert who has spent a long time learning how best to control the process. So, control rule is the combination of expert’s theoretical knowledge and practical experience. This controller is a double input and single output system, which is constructed just like the type of “IF ^{A 5 1} and ^{A 5 2} THEN C”. Next, we will use the above linguistic quantification to specify a set of rules (a rule-base) that captures the expert’s knowledge about how to control the robot. For the robot controlling problem, with two inputs and five linguistic values for each of these, there are at most 5² = 25 possible rules (all possible combinations of premise linguistic values for two inputs).These fuzzy control rules are shown in Table 3 described below.

Rule 1: If A 5 1 =NB and a 5 2 =NB then C=1 Rule 2: If A s 1 =NB and a 5 2 =NS then C=2 Rule 3: If A 5 1 =NB and a 5 2 =ZR then C=3

Rule 25: If A 5 1 =PB and a 5 2 =PB then C=25

such expertise is loaded into the fuzzy controller to automate the reasoning processes and actions of the expert.

Through parameter adjustment, ultimately established the input variables Δs1, Δs2 membership function which are shown in Fig 11 and Fig 12[10-13].

Figure 11 Shape and distribution of Δs1’s Membership Function

Figure 12 Shape and distribution of Δs2’s Membership Function

TABLE Ш . TABLE OF FUZZY CONTROL RULE

c		3$2
		MB	Ж	ZR	PS	PE
Asi	MB	1	2	3	4	5
	Ж	6	7	s	9	10
	ZR	11	12	13	14	15
	PS	16	17	18	19	20
	PE	21	22	23	24	25

Finally, here established are fuzzy variables table of Δs1, Δs2 and their membership degree, which has been listed in Table 4 and Table 5.

Table № . Membership degree of ^{A 5 1}

According to these control rules, we can easily get corresponding control decision C.

4) Foundation of membership function

Table V . Membership degree of ^ S ²

usz	-6	-5	-4	-3	-2	-1	0	1	2	3	4	5	6
PB	0	0	0	0	0	0	0	0	0	0	0.2	0.9	1
PS	0	0	0	0	0	0	0	0.1	0.7	1	0.7	0.1	0
ZR	0	0	0	0	0.2	0.9	1	0.9	0.2	0	0	0	0
NS	0	0.1	0.8	1	0.8	0.1	0	0	0	0	0	0	0
NB	1	0.9	0.2	0	0	0	0	0	0	0	0	0	0

T able VI. E xperimental results

IiTut		Controller Output	Robot Action	Input		Controller Output	Robot Action
Ail Ai2				Ail Ai2
-6	6	1Ш	1	0	0	13	13
-56	6	102	1	1	4	14.4	14
-6	4	186	2	3	4	19.2	19
-3	3	7	7	4	6	20.3	20
-2	1	822	8	6	6	25	25

In the paper, Fuzzy decision is Sugeno fuzzy decision, and the solution of fuzzy use average weighted method.

The

Relationship surface between Fuzzy controller's is as

output and input shown Fig 13 below.

Figure.13. Relationship surfaces between input and output

• V.    E xperiments and A nalysis

To validate the proposed fuzzy controller, the experiment on METALFIGHTER-2 humanoid robot and simulation in Matlab has been run. In the first experiment, I randomly adjusted the position between the robot and football, and made 10 records of different robot locations that included the values of (Δs1 Δs2) and the corresponding instructions number executed by Robot. What can be drawn easily from the Table 5 below is that the fuzzy logic control system has features of simpleness, high control accuracy and high stability. In particular, compared with the traditional control method, Fuzzy control has a better adaptability for solving the nonlinear system like this.

• VI.    C onclusion

  Humanoid soccer robot system is a multidisciplinary system, and its application will become increasingly widespread. In this paper, a fuzzy control system structure is completed which is based on visual robot soccer system. The design of basic movements of the lower machine of the system is completed in robobasicv2.72 debugging. Both image processing and fuzzy decision-making control in PC are programmed in Visual Studio 2008. the type of “Sugeno” fuzzy reasoning used in the system has advantages of simple computation and the benefits of mathematical analysis, and it is easy to combine with the methods such as PID control, Optimization and adaptive, thus obtaining with the controller or the fuzzy modeling tools that have the ability of optimization and adaptive.

A cknowledgment

This work was partly supported by the key Disciplinary of Mechanical Design and Theory of Xihua University (NO.XZD0813-09-1), partly by the Talent introduction and Training project of Xihua University (NO.R0620205), and partly by Key Discipline Construction Project in Sichuan Province (SZD0409-08-1).
