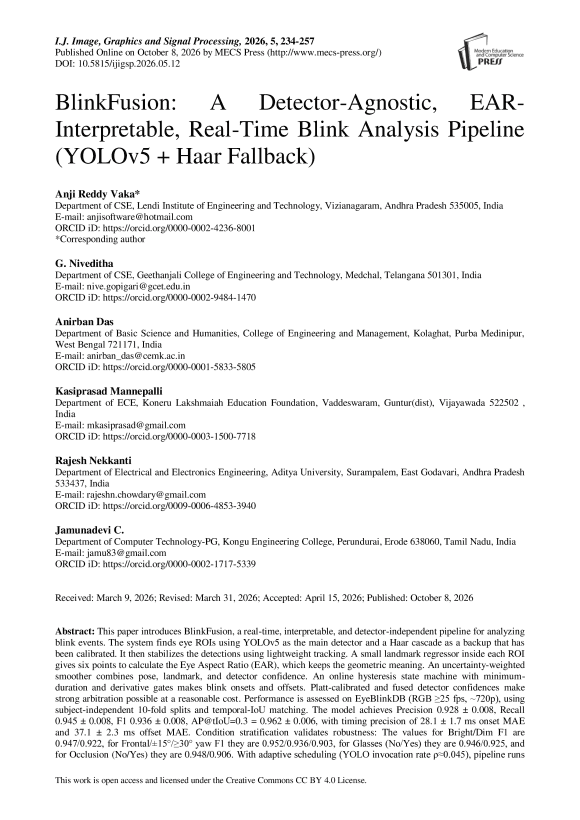

BlinkFusion: A Detector-Agnostic, EAR-Interpretable, Real-Time Blink Analysis Pipeline (YOLOv5 + Haar Fallback)

This paper introduces BlinkFusion, a real-time, interpretable, and detector-independent pipeline for analyzing blink events. The system finds eye ROIs using YOLOv5 as the main detector and a Haar cascade as a backup that has been calibrated. It then stabilizes the detections using lightweight tracking. A small landmark regressor inside each ROI gives six points to calculate the Eye Aspect Ratio (EAR), which keeps the geometric meaning. An uncertainty-weighted smoother combines pose, landmark, and detector confidence. An online hysteresis state machine with minimum-duration and derivative gates makes blink onsets and offsets. Platt-calibrated and fused detector confidences make strong arbitration possible at a reasonable cost. Performance is assessed on EyeBlinkDB (RGB ≥25 fps, ~720p), using subject-independent 10-fold splits and temporal-IoU matching. The model achieves Precision 0.928 ± 0.008, Recall 0.945 ± 0.008, F1 0.936 ± 0.008, AP@tIoU=0.3 = 0.962 ± 0.006, with timing precision of 28.1 ± 1.7 ms onset MAE and 37.1 ± 2.3 ms offset MAE. Condition stratification validates robustness: The values for Bright/Dim F1 are 0.947/0.922, for Frontal/±15°/≥30° yaw F1 they are 0.952/0.936/0.903, for Glasses (No/Yes) they are 0.946/0.925, and for Occlusion (No/Yes) they are 0.948/0.906. With adaptive scheduling (YOLO invocation rate ρ≈0.045), pipeline runs at about 32 FPS on the CPU (about 90 FPS on the observed frame loop) with a fixed 3-frame delay, which is fast enough for real-time use on cheap hardware. Ablations demonstrate progressive improvements resulting from calibrated fusion, tracking, quality-weighted EMA, and hysteresis (F1: 0.903 → 0.952). The approach is modular (you may switch the detector), doesn't need bounding boxes, and makes judgments that can be explained using EAR traces and thresholds. So, BlinkFusion is a useful, ready-to-use solution for HCI and clinical contexts that need clear, accurate, and quick blink analytics.
