Improving the Proactive Recommendation in Smart Home Environments: An Approach Based on Case Based Reasoning and BP-Neural Network

Published Online June 2015 in MECS

Advances in computer sciences over the last decade have made digital electronics smart, cheaper and smaller. This, coupled with revolutions made in communication technology, has contributed to the development of sophisticated networked systems. Through this development, pervasive computing has emerged as part of our daily life and ubiquitous systems have raised the interest of many researchers [1].

Ubiquitous systems comprise a collection of devices embedded everywhere in the environment to make a wide range of systems capable to achieve greater functionalities. Context-aware systems, also called pervasive systems, are an emerging solution to achieve such task. The arrival of these systems will bring great opportunities to provide recommendation services to users. Indeed, they will be in charge of supervising the way users interact with the pervasive environment, providing a way to adapt the behavior of applications in order to satisfy user expectations. Therefore, access to these services must be done in a proactive manner. It requires the capacity of the pervasive system to perceive the current situation of the user, predict his needs and act spontaneously by offering the most relevant/personalized services taking into account the context of use.

Pervasive systems can mainly be characterized by: i) The invisibility: They are integrated into everyday objects. ii) The context awareness: They can identify the environment and user characteristics in order to offer him the appropriate services. iii) Personalization: adapted to the user’s needs and preferences. iv)Adaptive: have the ability to adapt to context changes. v) Proactive: act spontaneously to serve the user.

Home Area Networks can be considered as an important pervasive/recommender research area. It has received considerable attention from the computer industry in the past couple of years and many applications and projects have been developed [2]. The smarter home learns how people live their lives and offers automatic assistance. This might be to turn on/off lighting when the inhabitant enter or exit the home, or it might be to make sure that an Alzheimer patient always turns off the stove after cooking, etc.

Umar Saif presents in [3] an architecture of an embedded distributed operating system that offers a safe context-driven adaptation. The proposed operating system addresses challenge posed by ubiquitous systems using an XML-based directory that captures service and notifies the applications about changes in the device context to allow context-driven adaptation. A Dispatcher module has also been proposed to serve as context-aware call interface for the operating system, it allows to invoke the resource that best satisfies a requested service.

Mozer [4] proposed a neural network that predicts which zone in the smart home will become occupied within the next two seconds. The neural network used information upcoming from different sources like motion detectors, door status sensors, sound sensors, etc. The predictions are used to turn on the lights in the occupied zones before the user enters them. However, the approach supports only location prediction.

Authors in [5] have proposed a Smart Home Inhabitant Prediction algorithm to expect the next action of a user. The algorithm identifies matching sequences from the collected history and uses them to predict the next command. Gopalratnam and Cook present in [6] a system to predict arbitrary inhabitant–home interactions; they predict which device the user will interact with next. The same authors also address the issue of predicting when the next device interaction will happen.

Katharina Rasch in [7] proposed two smart assistants for smart homes. The first assistant was a recommender system that suggests useful services for the user. The suggested services are tailored to the user’s current situation, behaviors and preferences. The second assistant addressed the installation procedures. It reduces the need for manually describing device functionalities. As an alternative, users can simply plugin a new device and let the installation assistant run automatically.

This paper proposes an approach that enables smart home to become more context-aware. It recommends personalized actions to be performed for the user according to a current context (turning on lights when enter to home, turning off TV when inhabitant left the living room, turning on the air conditioning when the weather is cold, etc…). The proposed approach decides which services should be executed in the current situation and disables other unused services in other home locations.

The paper is organized as follows: Section 2 gives a brief overview about recommender systems. Section 3 introduces the Pervasive Recommender Systems. In section 4, we describe our proposed solution, followed by Section 5 which presents experimental results. The paper concludes with a discussion of future work.

• II.    Recommender Systems

Recommender systems can be traced to the work by Herlocker and Konstan [8], who hypothesized that the inclusion of knowledge about the user’s task into the recommendation algorithm in certain applications can lead to better recommendations. The general goal of a Recommender System aims to generate, for specific items, significant recommendations that might interest a user or collection of users. Recommender systems differ in the manner they analyze the collected data. Collaborative Filtering systems analyze only historical interactions; Content-based Filtering systems are based on profile attributes, while Hybrid techniques combine both collaborative and content based approaches.

• A.    Collaborative Filtering systems

Collaborative Filtering refers to the technique of recommending items to users, based on what similar users (with similar tastes) have liked in the past. They are commonly divided into neighborhood based and modelbased approaches. In the first method, a subset of users is chosen based on their similarity to the active user, and a weighted combination of their ratings is used to produce predictions for the current user. In contrast, model-based approaches induce predictive models based on the past ratings of all users [9].

• B.    Content based filtering systems

In the context of recommender systems, content based filtering refers to content-based recommenders, which provide recommendations by comparing representations of content describing an item to representations of a current content.

These approaches take into consideration all users and all items, where predictions are made without regard to the specifics of individual users or items. However, one can make a better personalized recommendation by knowing more about a user, such as demographic information, or about an item, such as the producer of a film[10].

Several researches have treated this problem as an Information Retrieval task, where the content associated with a user’s preferences is treated as a query. An alternative to Information Retrieval approaches is to treat recommending as a classification task, where each example represents the content of an item, and a user’s past ratings are used as labels for these instances. In the domain of demotic, many classification algorithms have been used for content-based recommending, including naives bayes, decision trees, and neural networks.

• C.    Hybrid filtering systems

Hybrid approaches comes to allow both content-based and collaborative filtering methods to produce separate ranked lists of recommendations, and then merge their results to produce a final list. Several hybrid approaches are based on Collaborative Filtering, but also maintain a content-based profile for each user. These content-based profiles are used to find similar users.

• III.    Pervasive Recommender Systems

• A.    Presentation

Currently, the main challenge of pervasive systems is to capture and model the user's intention, to assist him in his daily life by providing appropriate services at the right time and without "direct" intervention from him. Indeed, the intelligent environment must be no longer just to "react" to user commands but rather "acting". However; in the current pervasive systems, the user still expresses his needs and preferences using voice or gestures, and the intelligent environment responds with appropriate actions.

Approaches that use contextual information in the recommendation process attempt to model and learn contextual user preferences. These recommender systems are built on knowledge of contextual user preferences and typically deal with data records of the form . Each record captures how much a user liked a particular service in a specific context.

In our vision, a Pervasive Recommender System should have the characteristics that we define by:

• •    Context Awareness

Traditional recommender systems operate in a twodimensional space (User, Service). However, the use of multiple services, by the user, depends on the context. Many definitions have been proposed in the literature to define context and context-awareness. However, most researchers agree with the definition of Dey [11] he describes the context as:

“Any information that can be used to characterize the situation of entities (whether a person, place or object) that are considered relevant to the interaction between a user and an application, including the user and the application themselves.”

Pervasive Recommender systems must operate on Pervasive space (User, Service, Context) and propose services based on the user’s context.

• •    Proactivity

In addition to the ability of context awareness, pervasive recommender systems need to be proactive. In other words, they must be able to provide, spontaneously, personalized services to the user in order to minimize his/her explicit interaction with the intelligent environment.

• •    Anticipation

Pervasive Recommender systems must be able to anticipate future contexts of use and future user needs and preferences in these new contextual situations in order to serve the user continuously (in an uninterrupted manner).

• •    Scalability

Pervasive Recommender systems must be also able to evolve over time in order to support any changes that may arise in user’s context or/an in user’s needs and preferences in terms of intelligent services.

• B.    Case based pervasive recommender systems

Case based reasoning (CBR) is a problem solving approach, based on the reuse by analogy from past experiences called cases. A case consists of two parts: a problem and its solution. All the experiences form a cases base.

Fig. 1 show the CBR's cycle. Its steps are: the "Elaborate", the "Retrieve", the "Reuse", the "Revise" and the "Retain" phases.

Fig. 1. The CBR’s cycle [12]

The process starts when the application encounters a problem. The elaborate phase consists to build the target case from the problem. The retrieve phase consists to recuperate from the cases base the most similar cases to the target case (candidate cases). The similarity measures are defined according to the domain knowledge of the application. The reuse (adaptation) phase aims to adapt the candidate cases returned by the previous step to propose a solution to the original problem. The solution can be constructed either by transformation or by direct transfer, that is to say, by a direct copy of the recuperated solution. The revise phase consists of a review of the proposed solution by experts from the field. When the proposed solution is evaluated as correct, the new case composed of the description of the problem and the proposed solution is retained (The retain phase) in the cases base for future use.

In the context of smart home, few studies have used the CBR method to automate service recommendation to residents, among these works we mention:

• [13]    Proposes a case based approach to provide a set of automated services in smart homes. It supports scenarios depicting a smart home environment, such as: air conditioning and lighting on/off, TV channel selection). The work by [14] applies case-based-reasoning using neural networks for smart homes, especially eldercare, health-care and emergency solutions.

• IV.    The Proposed Approach

• A.    Principle

Our approach aims to integrate to the pervasive recommender systems, the ability to predict the most useful services to be offered to the user in future contextual situations and this by exploiting the context history. This latter is extracted from past interactions between the user and Pervasive recommender systems.

To implement our approach, we:

• •    Build the Contextual User Profile Database (CUPDB) from the raw cases base which contains all the contextual user interactions with the pervasive recommender system. The CUPDB is obtained by aggregation cases that have the same context [cf.parag . IV.C.2].

• •    Then we use this CUPDB to allow the learning process of the back propagation algorithm [15] which we use to train the neural network [cf.parag. IV.C.3].

• •    Finally, we use case based reasoning method to allow: firstly, the prediction of the most relevant list of services to propose to user in future context situation. Secondly, we integrate to the CBR cycle new

procedures to save energy into the smart home environment. Finally, to memorize the new user’s experiences into the raw cases base.

• B.    Contextual User Profile modeling

• 1)    User experience

A case within CBR meaning is traditionally composed of a description of the problem and its solution. In our approach, we define a user experience as a case under CBR meaning, which the problem is the user's context and the solution is one preferred service by the user in this context. We define a user experience by:

User experience =

Where:

• - User context represent all context parameters that may influence the user preferences in relation to an intelligent service. A context parameter (P_i) is a parameter which represents fully or partially a context information. In our approach, we use the model valueattribute [16] to represent parameters of the context.

The user context is represented as follows:

User Context = {P i / i= 1,….,n }

Where, n is the number of parameters that define a relevant context for an intelligent service.

- User preference: We define a user preference with a set of descriptions of an intelligent service including: what a user intends to do. To illustrate that, let consider a user who wishes to launch the TV in the living room. The preference express that the user wants to put the "TV" ON. Consequently, a user preference can be presented by the two parameters: The service identifier and the state of the service (ON/OFF).

In general manner, we represent a user preference by:

User preference = {Sd j / j= 1,….,m }

Where, m is the number of parameters that define a set of descriptors, for this preference, in relation to an intelligent service.

• 2)    User Contextual Profile

A user contextual profile is a set of preferences that characterize a user or a group of users in a particular context. Besides, in terms of services, the user preferences are naturally affected by its context. These preferences differ from one context to another. For example, a user may prefer to listen to the radio in the morning while driving his car and watching TV in the evening. So the preferences of a user are strongly related to his context and his profile. In fact, we assume that profile and context are two inseparable elements and a profile did not make sense if it is not associated to its context.

As a result, we define the contextual user profile of a user by his set of preferences in a given context and we set it by the couple:

User Contextual Profile = (User Context, List of user’s preferences)

Where,

List of user preference = {Prefk      ; k= 1,….,t }

And k is the number of user’s preferred services in a given context.

• C. Contextual User Profile database construction and learning

• 1)    Objective

The aim of the contextual user profile database that we propose is to facilitate prediction of the most relevant services to the user in a given context. To achieve this, we go through the following steps (fig.2):

• •    Raw cases base preprocessing,

• •    Preprocessed cases storage in the preprocessed cases base,

• •    Construction of the Contextual User Profile database, by aggregation cases that have the same context values in their part "user context".

• •    Storage of user’s contextual profile in a database that we call Contextual User Profile Database (CUPDB).



  Fig. 2. Contextual User Profile Database construction




• 2)    Raw cases base preprocessing

A raw case is a user experience. The preprocessing phase is the process of detecting and eliminating duplicate user experiences.

• 3)    Contextual user profil contruction

To build the contextual user profile, we proceed by the aggregation of preprocessed cases in which the part of the user’s context is similar.

Generally, we calculate the Contextual User Profile (X) by the following formula:

j = q

X l = ({P i }, {Pref j }) = ∑ ({ p_i }, pref_j ) j = 1

Where:

• -    l is the number of the extracted user contextual profile

• -    q is the set of user’s preferred services in the context represented by the set of context parameters {Pi}.

We note that this Contextual User Profile Database is periodically updated (regenerated) in order to track any eventual changes in user’s preferences over time.

• 4)    The learning process

After computation of contextual user profiles X l , back propagation algorithm was used to train the neural network. The learning process is as follow:

• •    Randomly initialize weights and bias of the network.

• •    Compute the hidden layer neuron using sigmoid activation function:

Y=f( ∑ X .w +w 0 )                             (2)

• •    Compute the output layer neuron using sigmoid activation function:

Z=f ( ∑ Y .v+v 0 )                                 (3)

• •    Calculate errors of the output and hidden layers.

• •    Adjust weights:

w ..( n ) = w ..( n - 1) +   n8 .( n ) y .( n )   + a A .( n - 1)

ji         ji                  j i            ji              (4)

With:

J n) = ^

e/nj) [1-у(п)]    If yin[1-у(п)] Z5k(n)wkj(n)

Є output layer

If Є hidden layer

k

• •    Calculate the total error of the network.

• •    Repeat these steps until minimizing the network total error.

Where, X the vector of input layer neurons, Y is the vector of the hidden layer neurons, and Z represents the output layer neurons. w is the weight matrix between the input and the hidden layer. w0 is the bias of the hidden layer neurons. v is the weight matrix connecting the hidden and the output layers, and v0 is the bias of the output layer neurons, ej is the error vector for output neurons. η and α are learning rate and momentum factor.

• D. Case based reasonning cycle of our approach

To allow automatic service recommendation in pervasive environments we are based on the CBR method. We summarize the whole CBR cycle of our approach in fig. 3:

User

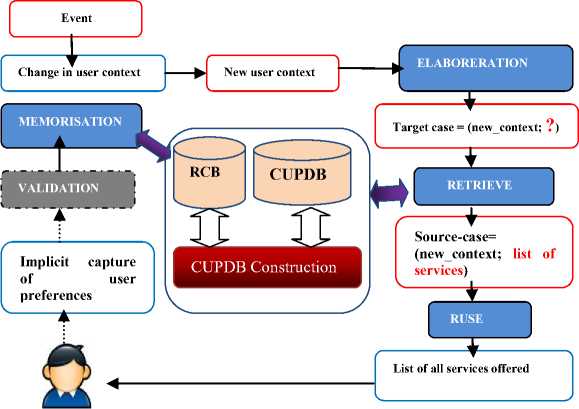

Fig. 3. CBR cycle of our approach

This list contains a set of service to enable or disable as needed by the user. For example, if in the current context the user like watching TV in the dark. The list should contain the services {TV ON , Light OFF}.

This list is transferred to the actuators of the smart home to enable or disable services mentioned in the list.

But, in the intelligent home there is another concern is economization of energy: in this sense we thought to operate (execute) services recommended by the pervasive recommender services in the current context of the user and to disable the rest of smart home services and this to save the energy.

Disabling the rest of the services of the house should be done if there’s no one in other parts of the home.

We accomplish this operation in CBR cycle based on the rules that we call energy management rules in the smart home.

With:

• •    S = {s i / i=1,.....n}The set of all intelligent services of a smart home.

• •    CXT={cxt j , j=1,.....m} all user contexts in a smart home.

• •    Current-context is the current context of the user.

• •    U cx _t j ={u j / j=1,.....k} the set of service to recommend to the user in the context j . with u j belongs to S.

Energy management rules in the smart home:

“ If current-context = cxt j and For each cxt belongs

CXT- cxt j and If user’s-presence = ‘no’ Then For each s belongs to S- U cxtj put state = OFF”.

• 4)    Memorization phase

Once the set of services is provided, it comes the role of the memorization phase which observes the reaction of the user, which can accept all of the services offered or to select another set of services.

Memorization phase analysis of the reaction of the user and product a new case to be recorded directly in the raw cases base. Each case contains in its part "user context" the current context of the user and its solution part contains the description of a particular service from the set of the offered services.

The memorization phase is done without any explicit validation by the user. This implicit validation phase of the CBR cycle is a key point of our approach to meet our objective to increase the proactivity of pervasive recommendation systems.

• V. Experimentation

In this section, we introduce the way of utilizing the proposed approach. First, original data are generated by sensors, and as in classical CBR system, phases varies from case elaboration to case memorization (fig.1). The application can be capable to automatically launch, for the user, the appropriate services according to his current context in any context of use and disables other unused services.

The information context in smart home environment can be defined using several parameters. In this study, we define the context of the user profile by:

User Context = {P1= Time, P2= Localization, P3= temperature}

Where attributes:

• •    P1: represents the current time of the day {1-6, 6-8, 810, 10-12,12-13, 13-14, 14-16, 16-18, 18-20, 20-22, 22-01}

• •    P2: indicates the current location of the user {kitchen, living room, bedroom, dining room}

• •    and P3 indicates the daytime temperatures {cold, warm, hot}

We define a smart home service by two parameters: The service identifier and the state of the service (ON/OFF).

Where:

• •    Service-id: represents the name of a specific smart service: {Light, TV, air-conditioner ,etc…}

• •    State represents the state of the service : {ON,OFF}

The proposed system activates or deactivates the appropriate candidate solutions (TV, radio, airconditioner, stores, and lighting) according to a given context.

The following table (table 1) shows some considered scenarios:

Table 1. some scenarios of trained data

Training Database
User context					service		classes
Time	Localization		temperature		Services-id	state
20-22h	living room		warm		Light, TV	On	C0
20-22h	living room		cold		Light, Tv,air-conditioner	On	C13
7-8h	bedroom		warm		stores	On	C4
20-22h	Dining room		cold		TV, air-conditioner	On	C1
20-22h	Dining room		warm		TV	On	C3
>1h	bedroom		warm		Light, stores, air-conditioner	Off	C12
Example of new contexts
Time	localization	temperature		Desired action		Obtained result
23h	bedroom	warm		C12(Light, stores, air-conditioner, off)		C[12]=0.9766893941905033,
00h	living room	warm		C12(Light, stores, air-conditioner, off)		C[12]=0.9924555636118803,
22	living room	cold		C13 (Light, Tv,air-conditioner)		C[13]=0.9859041344639088,

Experimental results show that the system responds well with a prediction rate that reaches 97%.

• VI. Conclusion

Hopefully to have a computing structure vanished into the environment; the aim of this paper was to incorporate the Contextual User Profile in the automatic recommendation process of smart home environment.

The general idea is to facilitate user interaction with some context aware applications by determining, on behalf of the user, the application to be performed. The proposed solution extracts user’s preferences based on his previous interactions with the system and launches automatically, in a specific context, the appropriate services and disables other unused services inside the smart home environment.

The experimental evaluation was performed using simulated contexts and user preferences.

It is obvious that the gap is large between laboratory demonstration and scenarios available on a large scale. In our future works, additional scenarios will be considered to support various user specifications and additional methods will be developed to address the problem of missing and noisy sensor data.
