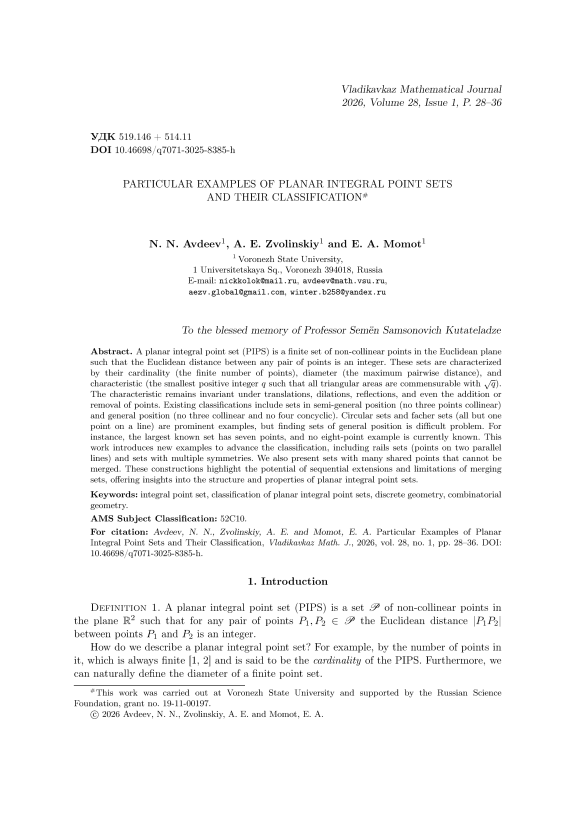

Particular Examples of Planar Integral Point Sets and Their Classification

Definition 1. A planar integral point set (PIPS) is a set P of non-collinear points in the plane R 2 such that for any pair of points P i ,P 2 G P the Euclidean distance IP 1 P 2 I between points P i and P 2 is an integer.

How do we describe a planar integral point set? For example, by the number of points in it, which is always finite [1, 2] and is said to be the cardinality of the PIPS. Furthermore, we can naturally define the diameter of a finite point set.

• ^# This work was carried out at Voronezh State University and supported by the Russian Science Foundation, grant no. 19-11-00197.

• (c) 2026 Avdeev, N. N., Zvolinskiy, A. E. and Momot, E. A.

Definition 2. The diameter of a planar integral point set P is defined as diam( P ) = max p i ,P 2_Gp I P 1 P 2 I .

Definition 3 [3, 4]. The characteristic of a planar integral point set P is the least positive integer p such that the area of any triangle with vertices P 1 , P 2 , P 3 ∈ P is commensurable with ^√ p .

The characteristic of a PIPS does not change if the set is moved, dilated or flipped; moreover, even addition or deletion of a point does not change the characteristic of a PIPS.

While the minimal possible diameter for planar integral point sets of a given cardinality was being computed, it was noticed [5] that such a diameter is attained at sets with many points on a straight line; for some estimations on this tendency, we also refer the reader to [6]. (For the recently established connection between the characteristic and the minimal possible diameter, see [7].) Thus, the following classification was introduced.

Definition 4. A PIPS P is said to be in semi-general position if no three points of P are located in a straight line.

The most dominating examples of PIPSs in semi-general position are circular sets.

Definition 5. A planar integral point set that is situated on a circle is said to be a circular point set.

So, the following constraint appeared.

Definition 6. A planar integral point set P is said to be in general position if no three points of P are located on a straight line and no four points of P are located on a circle.

Planar integral point sets in general position are very difficult to find; the first known examples of such sets with cardinality 7 were presented in [8]. Currently, there is no known example of a PIPS of cardinality 8 in general position.

The main purpose of this work is to demonstrate examples of planar integral point sets that may provide clues for the development of further classification.

It is rather common for points of a PIPS to have non-integer coordinates; for convenience, in such cases we use the notation [9-11]: /p/q * { ( x i ; У 1 ); ... ; ( x n ; y n ) }, which means that each abscissa is multiplied by 1 /q and each ordinate is multiplied by ^/p/q, i. e.,

^/q * У 1 ); ... ; ( x „ ; y. ) } = { (^ ; y^) ; ... ;     ; yn^) } .         (1)

Here p is the characteristic of the PIPS; any PIPS can be written in this form [11, Theorem 4].

Note that all examples that are discussed below are located on a union of at most three straight lines. For a classification of PIPSs located on the union of two straight lines, see [12].

There are some examples of PIPSs that are not contained in the union of any three straight lines: for example, these include the heptagons presented in [8] and 7-clusters from [13]. However, we have to keep in mind that circular inversion under certain conditions translates a planar integral point set into a planar integral point set (although sometimes additional dilation is necessary). On the other hand, circular inversion may translate a straight line into a circle and vice versa. Thus, we can consider the concept of generalized circles , which are circles or straight lines; obviously, from that point of view all the examples from [8] and [13] are located on a union of three generalized circles, because any seven points are located on a union of a circle and two straight lines.

• 2.    Rails Sets

Definition 7. A planar integral point set of n points with n — 1 points on a straight line is called a facher set.

Facher sets are predominant examples of planar integral point sets [14]. In [15], facher sets of characteristic 1 are called semi-crabs .

Definition 8 [12]. A non-facher planar integral point set situated on two parallel straight lines is called a rails set.

Among rails sets, sets with 2 points on one line and all the others on another line dominate.

The two PIPSs below have been obtained by dilating [12, Fig. 34] by 23 and 29 respectively; the third one has been constructed by dilation and merging.

Fig. 1. A PIPS of cardinality 42 and diameter 2473117504.

Fig. 2. A PIPS of cardinality 46 and diameter 3118278592.

Fig. 3. A PIPS of cardinality 48 and diameter 71720407616.

• •    Fig. 1:

P 42 = ^ 154 / 1 * { ( ± 219513840; — 15069600); ( ± 345596160;0); ( ± 260201760;0); ( ± 225792840; 0); ( ± 213234840; 0); ( ± 153961080; 0); ( ± 144668160; 0); ( ± 25116000; 0); ( ± 694026840; 0); ( ± 514710560; 0); ( ± 359116940; 0); ( ± 13423904; 0); ( ± 75682880; 0); ( ± 464143680; 0); ( ± 827069880; 0); ( ± 92144325; 0); ( ± 1195180740; 0); ( ± 1236558752; 0); ( ± 44590560; 0); ( ± 339925740; 0); ( ± 117312468; 0) } .

• •    Fig. 2:

P 46 = У 154 / 1 * ^{ ( ± 276778320; — 19000800); ( ± 435751680;0); ( ± 328080480;0); ( ± 268861320; 0); ( ± 194124840; 0); ( ± 182407680; 0); ( ± 1559139296; 0); ( ± 284695320; 0); ( ± 1506967020; 0); ( ± 1042827240; 0); ( ± 875077320; 0); ( ± 648982880; 0); ( ± 585224640; 0); ( ± 452799620; 0); ( ± 95426240; 0); ( ± 16925792; 0); ( ± 116181975; 0); ( ± 428602020; 0); ( ± 56222880; 0); ( ± 769560480; 0); ( ± 626458560; 0); ( ± 31668000; 0); ( ± 130761918; 0) } .

• •    Fig. 3:

• 3.    Example of Sets with Many Common Points That Cannot Be Merged

P 48 = У 154 / 1 * { ( ± 6365901360; - 437018400); ( ± 10022288640; 0); ( ± 23985026520; 0); ( ± 389293216; 0); ( ± 6183810360; 0); ( ± 4464871320; 0); ( ± 4195376640; 0); ( ± 728364000; 0); ( ± 35860203808; 0); ( ± 34660241460; 0); ( ± 7545851040; 0); ( ± 20126778360; 0); ( ± 14926606240; 0); ( ± 13460166720; 0); ( ± 10414391260; 0); ( ± 2194803520; 0); ( ± 2672185425; 0); ( ± 9857846460; 0); ( ± 1293126240; 0); ( ± 17699891040; 0); ( ± 14408546880; 0); ( ± 3007524114; 0);

( ± 6547992360; 0); ( ± 3402061572; 0) } .

Taking these examples into consideration, we can conjecture that there is an infinite point set with rational distances that contains P ₄₈ . However, it is known [16] that if a point set S with rational distances has infinitely many points on a line or on a circle, then all but 4 and 3 points, respectively, of S are on the line or on the circle.

Fig. 4 shows an example of three PIPSs of cardinality 8, each pair of which shares 6 or 7 points but cannot be combined into another PIPS.

a)

b)

Fig. 4. PIPSs with cardinality 8 and diameter 2520 with many common points.

c)

• • P = x/143 / 2 * { ( ± 1620; 0); ( ± 1920; 300); ( ± 735; 75); ( ± 340; 0) } ;

• • P = ^ 143 / 2 * { ( ± 1620; 0); ( ± 1920; 300); ( ± 735; 75); ( ± 1767; 147) } ;

• • P = ^ 143 / 2 * { ( ± 1620; 0); ( ± 1920; 300); ( ± 735; 75); ( - 340; 0); (1767; 147) } .

• 4.    Integral Point Sets with Two Axes of Symmetry

The distance between the non-adoptable points is \J ( ¹72⁶⁷ — 320 ) ² + ( 147 ) ² • 14 3 =

2 ^ 320401 . Notably, 320401 is a prime.

The set P 19 shown in Fig. 6 was obtained from the set P 9 shown in Fig. 5 by dilation and looking for points on the x -axis.

P 9 = {(0; 0); ( ± 1445; 0); ( ± 1085; 0); ( — 455; ± 528); (455; ± 528)} ,

Fig. 5. A PIPS of cardinality 9 and diameter 2890.

Fig. 6. A PIPS of cardinality 19 and diameter 20663808074.

P 19 = {(0;0); ( - 987843675; ± 1146332880); (987843675; ± 1146332880); ( ± 729918777;0); ( ± 972103809; 0); ( ± 1113030324; 0); ( ± 1400170149; 0); ( ± 3137217825; 0); ( ± 2355627225; 0); ( ± 10331904037; 0) } .

• 5.    Arrow-Like Planar Integral Point Sets with One Axis of Symmetry

In Fig. 7, the following PIPS is shown:

P 17 = { ( - 2847; ± 72072); (47073; ± 124488); (47073; 0); ( ± 98943; 0); ( - 694668; 0); (15457; 0); ( - 71487; 0); ( - 50367; 0); ( - 14943; 0); (23582; 0); (63073; 0); (125307; 0); (172207; 0); (329628; 0) ^} .

Note that the axis of symmetry for P 17 is the x axis; all such sets are of characteristic 1.

Moreover, note that the set contains three points with the same first coordinates.

In Fig. 8 and 9, other examples of arrow-like PIPSs are shown. The one in Fig. 9 is obtained from the one in Fig. 8 by dilation and looking for points on the x -axis.

Fig. 8:

P 10 = ^{ (0; 0); (0; ± 252); (960; ± 468); ( - 1120; 0); ( - 405; 0); (336; 0); (561; 0); (1311; 0) ^} .

Fig. 9:

P 15 = { (0;0);(0; ± 1413720); (5385600; ± 2625480);

( - 6283200; 0); ( - 2272050; 0); ( - 1971915; 0); ( - 635040; 0); (1884960; 0); (3147210; 0); (4558176; 0); (5976333; 0); (7354710; 0); (12920544; 0) ^} .

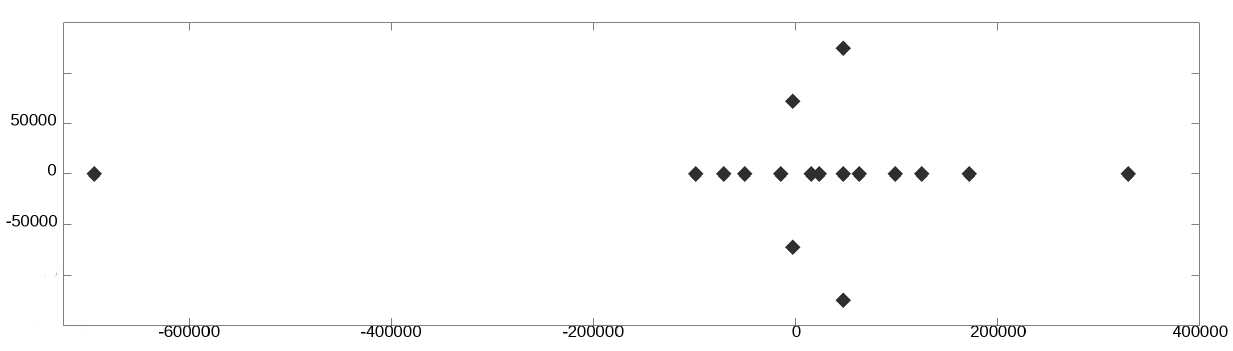

Fig. 7. A PIPS of cardinality 17 and diameter 1024296.

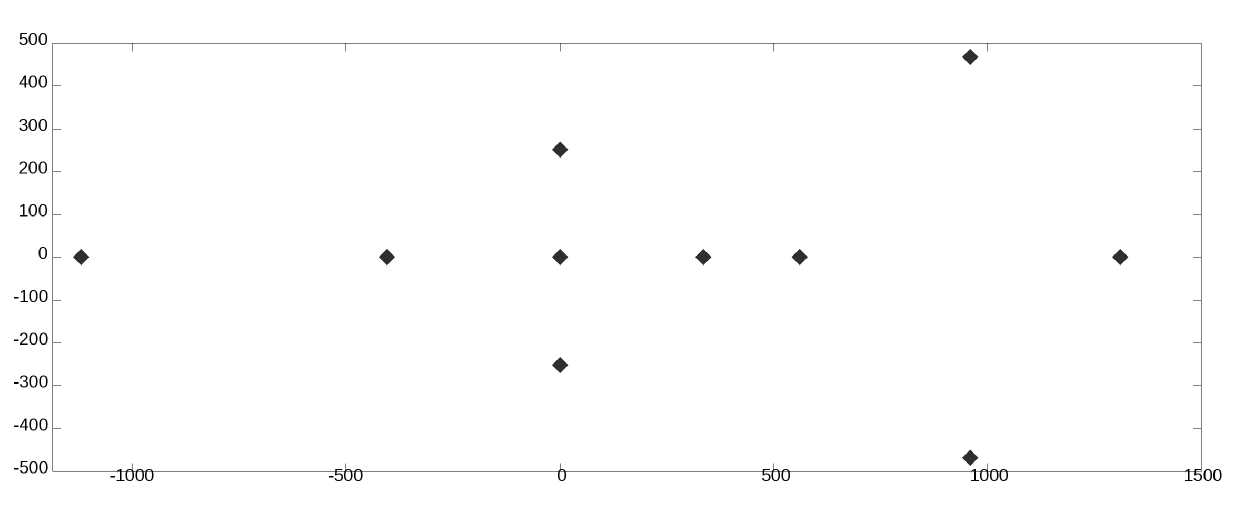

Fig. 8. A PIPS of cardinality 10 and diameter 2431.

ЗхЮ6

2xlO6 _

1Х106 _

°- ♦

-1Х106 _

-2х106 _

-Зх106

-6х'1О6----------4х'1О6----------2х'1О6

Ъ

2х10⁶ --------4xto®--------6х10⁶--------8xio®--------IxlO⁷------- 1.2j<10⁷

Fig. 9. A PIPS of cardinality 15 and diameter 19203744.

• 6.    Other Examples

Fig. 10 displays a PIPS with no axis of symmetry; although the set is of characteristic 1, it cannot be extended by the reflection in the x -axis. Moreover, we failed to extend it by dilation and looking for extra points on the x -axis.

P 8 = ^ 1 / 13 * ^{ (0;0);(8450; 0); (12844; 0); (21294; 0); (29575; 0);

( - 2366; - 8112); (10647; - 14196); (15022; - 3696) } .

о

-200

-400

-600

-800

^

боо

Fig. 10. A PIPS of cardinality 8 and diameter 2535.

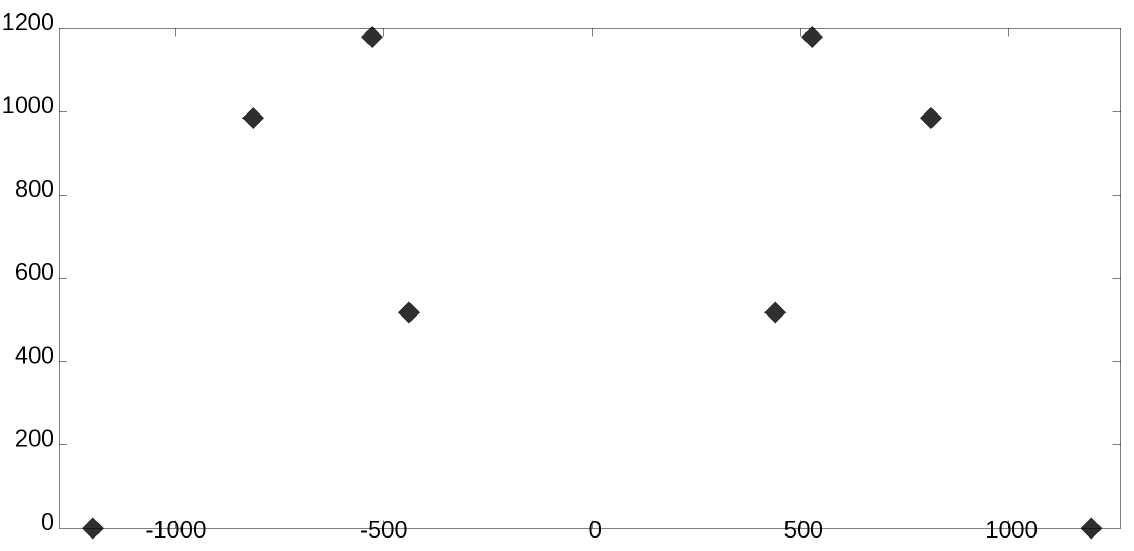

Fig. 11. A PIPS of cardinality 8 and diameter 2400.

The set shown in Fig. 11 has an axis of symmetry, but it is the y -axis, not the x -axis. Due to the fact that its characteristic is not 1, the set cannot be rotated by 90 ° but still be on the lattice (1):

P 8 y = V 42 / 1 * { ( ± 1200; 0); ( ± 529; 182); ( ± 814; 152); ( ± 440; 80) } .

• 7.    Final Remarks

All given planar integral point sets were obtained through a combination of computer search and the authors’ intuition.

The source code can be obtained at

Acknowledgements. The authors thank Dr. Prof. E. M. Semenov and Dr. A. S. Usachev for proofreading. Also the authors owe special thanks to the anonymous referee for the helpful comments and suggestions on the paper.

A sp ecial remark from N. Avdeev. I would like to express my deepest gratitude to the late Professor Semen Samsonovich Kutateladze, who played a pivotal role in my scientific career. He recommended the journal for my first significant scholarly article [17] and facilitated its submission, marking the start of a pioneering series of works on this topic at our university. This contribution is dedicated to his memory.
